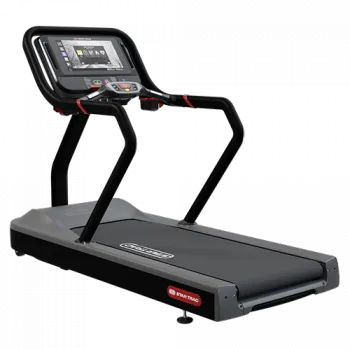

8TRX 19" EMBEDDED TREADMILL

When designing the Star Trac 8TRx, we started with the most solid foundation you could have, more than 20 years of treadmill superiority. And while most would have been content in making subtle improvements to an already proven design, we set out to create the ultimate marriage of user experience, benefits, desires and features ever put under foot. The result is our best treadmill ever. The 8TRx offers standard quick key controls, enabling users to quickly adjust speed and incline with a single button push. With conveniently close Hot Bar controls, patented deck suspension system and increased incline specs, the 8TRx has all the features and design elements users have longed for.

W: 36 IN (91 CM)
L: 85 IN (215 CM)
H: 63 IN (160 CM)
MAX USER WEIGHT: 500 LBS (227 KG)
PRODUCT WEIGHT: 388 LBS (176 KG)

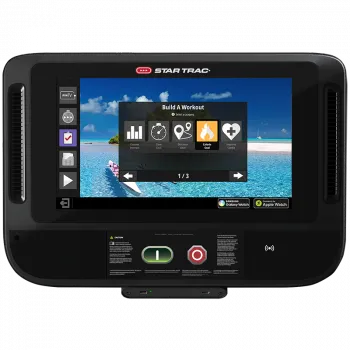

19″ Embedded Display Console
8TRx LCD console features a unique quick keys for speed and elevation control
Bluetooth connectivity for user workout data tracking
Telemetry and contact HR
USB charging port
HDMI streaming available with PVS and 19″ display
Multiple cup and accessory holders
LCD and 10″ displays pre-wired for 8 Series PVS entertainment, 800/900mHZ receivers, and tablet holder
Easily accessible Hot Bar is located closer to the user with one-finger speed and elevation controls, integrated stop button and contact heart rate grips
Star Trac’s popular personal fans create a more rewarding workout
Soft Trac triple cell cushioning system provides maximum shock absorption making the entire deck a sweet spot
20% max incline | 15 mph max speed
22” (55 cm) wide belt
10”(25.4 cm) step-up height
User weight capacity of 500 lb (227 kg)
Lighter weight aluminum frame
5 HP AC motor
60″ x 22″ (152 cm x 55 cm) running surface
Electrical requirements: 110V/20 Amp dedicated circuit with NEMA 5-20 outlet; or 220V/15 Amp dedicated circuit with NEMA 6-15 outlet
Lighter weight, corrosion-resistant aluminum frame

Connect to Apple Watch or Samsung Galaxy Watch
OpenHub LCD Consoles and 15″/19″ Embedded Displays are able to connect directly with Apple Watch or Galaxy Watch for real-time data sharing between the equipment and watch using NFC technology to allow a simple tap to pair connection.

OpenHub Cardio Console
The re-imagined 15″ embedded touchscreen display adds a premium new look and experience to the already-great Star Trac cardio line. The new embedded console offers a new user interface design, Star Trac 20 HIIT Programming, RunTV and web-based media access for news, entertainment and workout motivation. With standard features like HDMI streaming, Bluetooth connectivity and TV tuner options, this is a display that has something for every user.

8-TRX TREADMILL SPECIFICATIONS
BASE FEATURES
DECK SYSTEM Reversible MDF deck with phenolic coating
RUNNING BELT SYSTEM 22in (55cm) wide belt
SIZE OF RUNNING SURFACE 60in x 22in (152cm x 55cm)
ABSORPTION SYSTEM Triple cell cushioning system provides maximum shock absorption making the entire deck a sweet spot
STEP UP HEIGHT 10in (25cm)
INCLINE RANGE 0-20% max incline
SPEED RANGE 0.5-15mph (0.5-24kmh)
HEART RATE MEASUREMENT SYSTEM Telemetry and contact HR, Bluetooth w/19" display option
CENTER CONTROLS BAR Easily accessible Hot Bar® is located closer to the user with one-finger speed and elevation controls, integrated stop
button and contact heart rate grips
DISPLAY Choose from LCD, 10" or 19" OpenHub display options
USER DETECT SYSTEM Yes, programmable on/off
ACCESSORIES Multiple bottle and accessory holders, LCD and 10” displays pre-wired for 8 Series PVS entertainment, 800/900MHz
receivers, and tablet holder
MAX USER WEIGHT 500lb (227kg)
DRIVE SYSTEM 5 HP AC motor
ELECTRICAL REQUIREMENTS 110V/20 Amp dedicated circuit with NEMA 5-20 outlet; or 220V/15 Amp dedicated circuit with NEMA 6-15 outlet
ADDITIONAL FEATURES 3.5in rollers
FRAME
MATERIAL Powder Coated Aluminum Frame
CUSTOMIZABLE Paint color options approval required
STANDARD COLOR OPTIONS Black
LENGTH 85in (215cm)
WIDTH 36in (91cm)
HEIGHT 63in (160cm)
PRODUCT WEIGHT 388lbs (176kg)
SHIPPING DIMENSIONS 86in x 39in x 31in (218cm x 98cm x 80cm)
SHIPPING WEIGHT 470lbs (213kg)
